• Using a dedicated high performance AIS processor using SDR technology
• Integrates full-function AIS transceiver
• Support for 2W CSTDMA Class B specification
• Excellent Rx sensitivity down to -119dBm
• Meet type I/II/III AIS AtoN requirements
• Automatically receiving and processing of all AIS message
• Can receiving then decoding position, heading, speed and other information
according to the standard format of AIS message
• Comply with IEC 60945, IEC 62287-1, IEC 62320-2, ITU-R M1371-5 standards

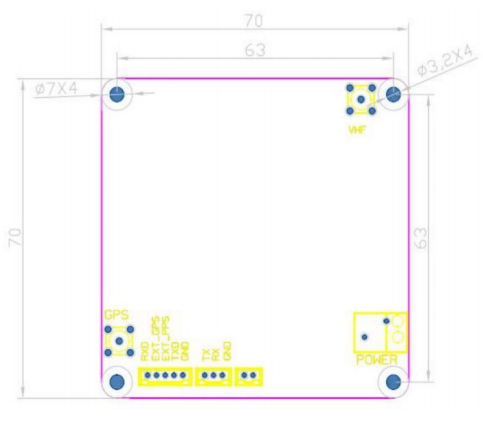

• Ultra small size (70mm x 70mm x 15mm)
• Suitable for general shipborne AIS navigator, compact AIS base-station, AIS
beacon light, AtoN, smart fishing grounds, offshore wind power equipment and
bridge collision avoidance early warning system

SPECIFICATIONS

Power Supply: 9 to 36 VDC Power Consumption: 150mA @ 12VDC, <2.3W average Output Power: 2W CSTDMA GPS: Built-in 50 channel GPS receiver IEC 61108-1 compliant Data Interface: 3.3V TTL，NMEA0183 IEC61162-1: NMEA0183 input & output, 38400bps Silent mode switch input VHF Transceiver: transmitter x 1 / receiver x 2 Operation Frequency: 156.025 to 162.025MHz in 25KHz Receiver Sensitivity: <-119dBm @ 20% PER Four LED indicators for power, transmit, receive and error IEC60945 compliant Operating Temperature: -20°C to +60°C Standards and Approvals IEC62287-1 Edition 2 ITU-R M.1371-5 IEC60945 Edition 4 IEC61162-1/2 Edition 2 IEC61108-1

SUPPLIED WITH

AIS configuration command guide Datasheet and user manual GPS Antenna AIS Antenna(Optional)

TYPICAL APPLICATIONS

AIS Class B transceiver black box Compact AIS base station Type 1/2/3 AtoN and virtual AtoN UAV and USV Bridge Collision Avoidance Warning System

KEY FEATURES

Multi-mode configurable AIS features for ship, base station, AtoN, USV and UAV Combined 2W CSTDMA Class B, AIS AtoN and base station in one hardware High Rx sensitivity up to -119dBm @ 20% PER Wide supply voltage 9~36VDC Small size 70mm x 70mm x 15mm
