AIS Transponder
The automatic identification system of type B

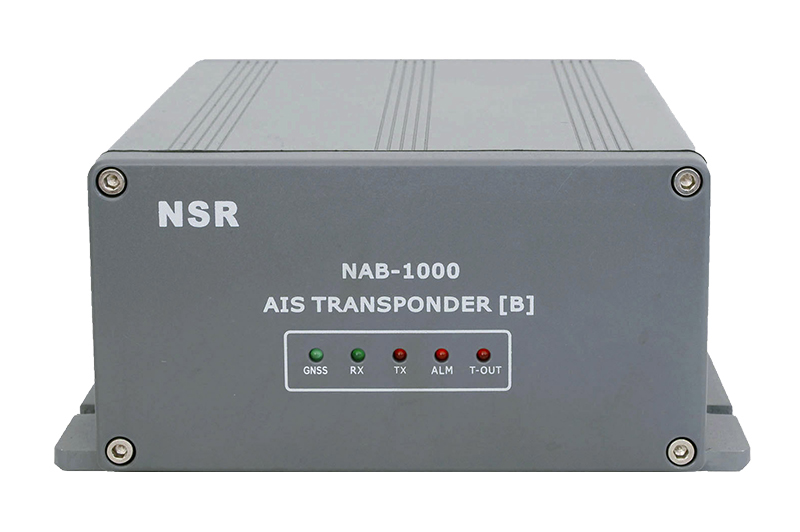

The automatic identification system of type B, NAB-1000
chips
chips

• Standalone Transceiver Unit.

• It can be installed on various coastal and inland waterway vessels other than SOLAS Convention ships

• Compatible with a wide range of AIS equipment, including AIS shore stations, AIS aids to navigation, AIS base stations, AIS-SARTs, AIS MOBs, AIS EPIRBs, etc

• Features Beidou, GPS, and GLONASS positioning capabilities

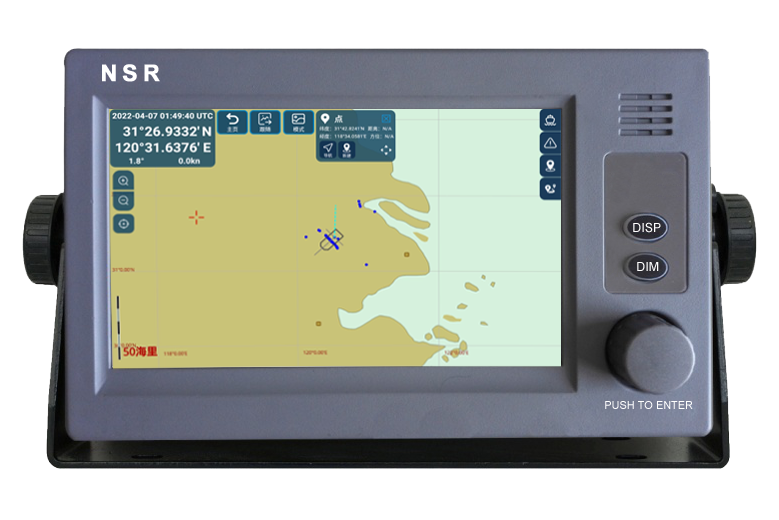

• Can be paired with multiple displays (AIS chartplotters)

• Equipped with a built-in wide-range isolated power supply for stable and reliable operation

• Conforms to international standards: IEC 62287-1, ITU-R M.1371-5

• Obtained CCS type approval certificate

• Obtained RS type approval certificate

Technical Specifications

Frequency Range:

156.025 ~ 162.025 MHz

Default Channels:

AIS 1, AIS 2

Bandwidth:

25 kHz

Output Power:

2 W

Communication Mode:

CSTDMA

Receiver Sensitivity:

Better than -110 dBm

Data Interface:

RS232/RS422, NMEA 0183, 38400 bps

Data Output Format/Rate:

NMEA 0183, 38400 bps

Power Supply Voltage:

DC 24V (Range: 12～38V)

Physical Dimensions:

81 (H) x 174 (W) x 160 (D) mm (Main Unit)

Weight:

1.4 kg (Main Unit)

Protection Rating:

IP22 (Main Unit, MKD, Chart Plotter), IP66 (Antenna)
